Cross drilling/milling unit for sub spindle
Item Number : CTLB311205
Machine : Citizen
- L12 (1M7)
- L20VIII/IX/X/XII (2M8/2M9/2M10/2M12)
SONG GIA whole series of products are 100% made by our factory in Taiwan, producing all kinds of bmt tool holders, boring bar holder,turning tool holder, drilling / milling multiple live tool holders; all kinds of tool holders have high rigidity and high precision, and can be widely applied in various turret types.
SONG GIA holds a rigorous quality system and quality control process:
●100% inspection on key parts.
●Verify the roundness and concentricity accuracy of each center bearing to ensure the circumferential vibration tolerance of all live tool holders is within 4µm.
●Finished product inspection before shipment of all live and non-live tool holders.
SONG GIA provides you with diversified CNC drilling/milling whole series options to meet your various processing demands. We also provide customized design and production according to customers’ different requests.
Detailed specifications
| Speed ratio : | 1:1 |
| Maximum speed : | 6000RPM |
| Tool clamping : | ER11A |
| Reference code : | GSS1330/GSS1530 |

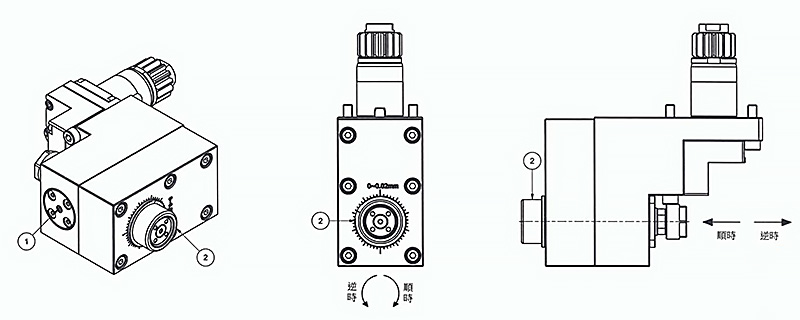

Instruction for how to adjust the distance
1.Use Allen Key to loosen ① M4 set screw. (No need to remove it.)
2.② knob: The adjustable distance is ±1.5mm. The default value is the center 0. The scale interval is 0.02mm.
3. Rotate ② knob 180 degrees counterclockwise before adjusting. (More stable.)
4. Turn ② knob clockwise, the spindle moves backward. Turn ② knob counterclockwise, the spindle moves forward.
5. Adjust to the wanted distance, tighten ① M4 set screw
