Radial drilling/milling unit
Item Number : BM40BL1B0102
Machine : BIGLIA
- B436
SONG GIA whole series of products are 100% made by our factory in Taiwan, producing all kinds of bmt tool holders, boring bar holder,turning tool holder, drilling / milling multiple live tool holders; all kinds of tool holders have high rigidity and high precision, and can be widely applied in various turret types.
SONG GIA holds a rigorous quality system and quality control process:
●100% inspection on key parts.
●Verify the roundness and concentricity accuracy of each center bearing to ensure the circumferential vibration tolerance of all live tool holders is within 4µm.
●Finished product inspection before shipment of all live and non-live tool holders.
SONG GIA provides you with diversified CNC drilling/milling whole series options to meet your various processing demands. We also provide customized design and production according to customers’ different requests.
Detailed specifications
| Speed ratio : | 1:1 |
| Maximum speed : | 6000RPM |
| Tool clamping : | ER20A |
| Internal coolant : | 25bar |
(Radial drilling/milling unit, IC)

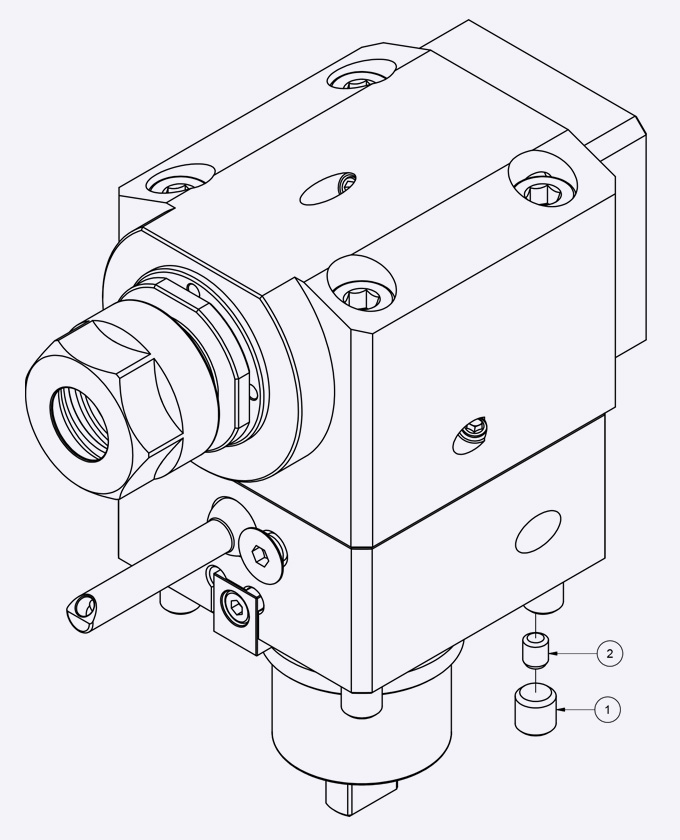

Instructions for use of the internal coolant
●When using the internal coolant:
1. Remove (1) M8 set screw.
2. Remove (2) M5 set screw inside.
3. Screw back (1) M8 set screw.
●When not using the internal coolant:
1. Remove (1) M8 set screw.
2. Screw back (2) M5 set screw inside.
3. Screw back (1) M8 set screw.
