液壓增速九十度迴轉刀座
型號 : BM55R6464G/H
適用廠牌 : Driven By Coolant
- BMT45/55/65

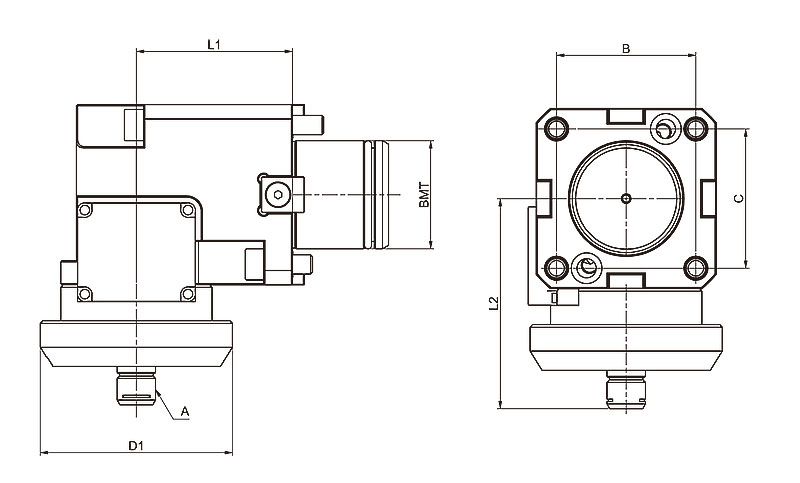

尺寸表
| 品號 | BMT | D1 | A | B | C | L1 | L2 | 適用廠牌 |
| BM45R5858G/H | 45 | 63/80 | ER-11 | 58 | 58 | 65 | 87.5 | DOOSAN |
| BM55R6464G/H | 55 | 63/80 | ER-11 | 64 | 64 | 70 | 92 | DOOSAN |
| BM65R7370G/H | 65 | 63/80 | ER-11 | 73 | 70 | 70 | 95 | DOOSAN |
| BM45R6856G/H | 45 | 63/80 | ER-11 | 56 | 68 | 65 | 96 | MIYANO |
| BM55R6050G/H | 55 | 63/80 | ER-11 | 60 | 50 | 70 | 87.5 | MAKAMURA |
| BM65R7169G/H | 65 | 63/80 | ER-11 | 71 | 69 | 70 | 95 | MAKAMURA |
液壓增速直柄迴轉刀座
