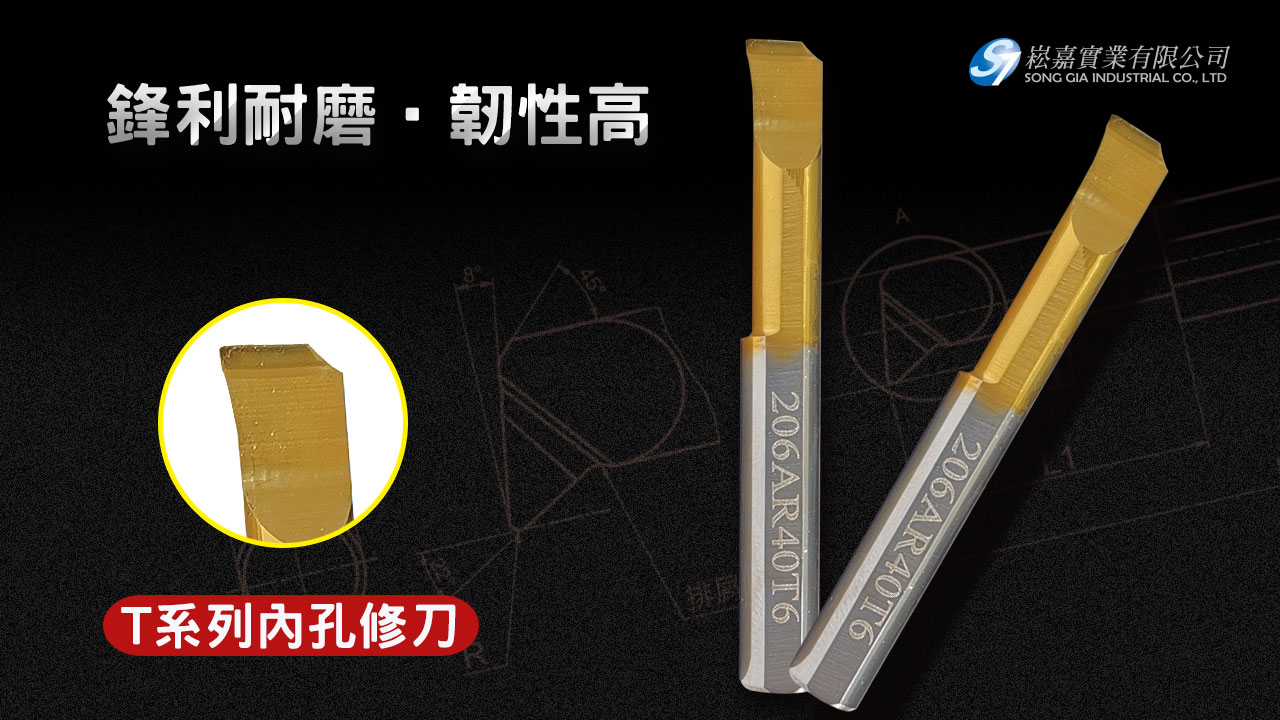

T系列內孔修刀
適用廠牌 : 內孔修刀/內孔勾刀柄
- 內孔修刀

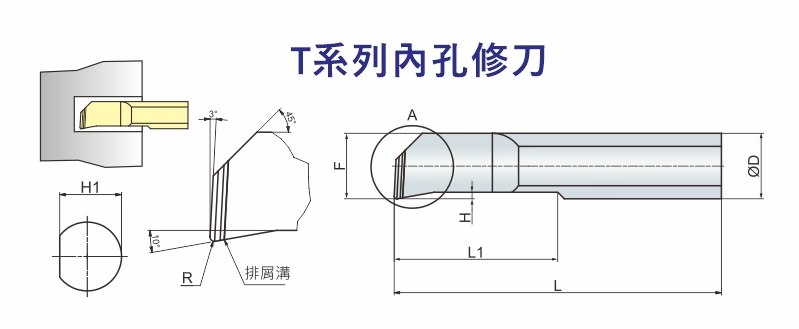

尺寸表
| 編號 | D | F | L1 | R | H | H1 | L |
|---|---|---|---|---|---|---|---|
| TGG203AR20T31050 | 3 | 2.9 | 10 | 0.2 | 0.3 | 2.7 | 50 |
| TGG203AR40T31050 | 3 | 2.9 | 10 | 0.4 | 0.3 | 2.7 | 50 |
| TGG204AR20T41550 | 4 | 3.9 | 15 | 0.2 | 0.5 | 3.7 | 50 |
| TGG204AR40T41550 | 4 | 3.9 | 15 | 0.4 | 0.5 | 3.7 | 50 |
| TGG205AR20T52250 | 5 | 4.9 | 22 | 0.2 | 0.5 | 4.7 | 50 |
| TGG205AR40T52250 | 5 | 4.9 | 22 | 0.4 | 0.5 | 4.7 | 50 |
| TGG206AR20T62250 | 6 | 5.9 | 22 | 0.2 | 0.5 | 5.7 | 50 |
| TGG206AR40T62250 | 6 | 5.9 | 22 | 0.4 | 0.5 | 5.7 | 50 |
| TGG208AR20T82260 | 8 | 7.9 | 22 | 0.2 | 0.7 | 7.7 | 60 |
| TGG208AR40T82260 | 8 | 7.9 | 22 | 0.4 | 0.7 | 7.7 | 60 |
