ER筒夾
適用廠牌 : 攻牙軸 /鑽孔軸/ ER筒夾/攻牙筒夾
- ER筒夾

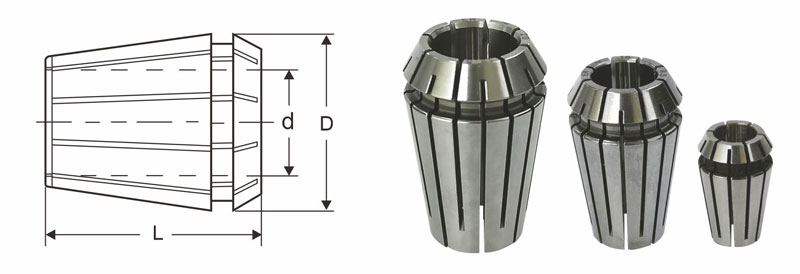

尺寸表
| 規格 | D | L | d夾持範圍 |
|---|---|---|---|
| ER-8 | 8.5 | 13.5 | 1~5 |
| ER-11 | 11.5 | 18 | 1~7 8加大 |
| ER-16 | 17 | 27 | 1~10.5 |
| ER-20 | 21 | 31 | 1~13 |
| ER-25 | 26 | 35 | 1~16 |
| ER-32 | 33 | 40 | 1~20 |
| ER-40 | 41 | 46 | 1~26 |

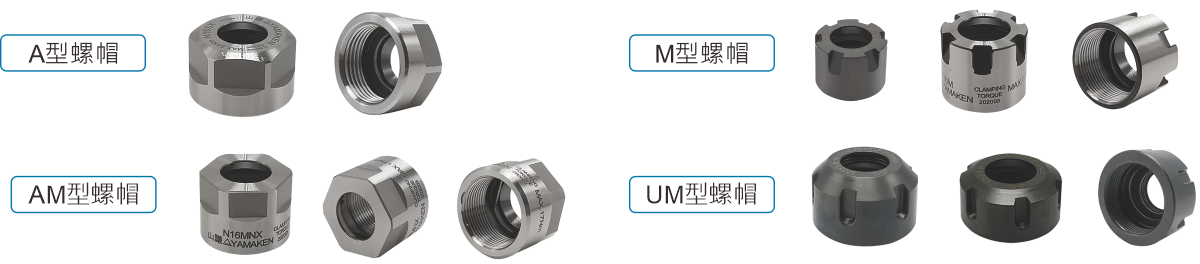

尺寸表
| 型式 | 規格 | 外徑 | 牙紋 |
|---|---|---|---|
| A | ER-11 | 19 | M14xP0.75 |
| ER-16 | 28 | M22xP1.5 | |
| ER-20 | 34 | M25xP1.5 | |
| M | ER-8 | 12 | M10xP0.75 |
| ER-11 | 16 | M13xP0.75 | |
| ER-16 | 22 | M19xP1.0 | |
| ER-20 | 28 | M24xP1.0 | |
| ER-25 | 35 | M30xP1.0 | |
| AM | ER-11 | 17 | M13xP0.75 |
| ER-16 | 24 | M19xP1.0 | |
| ER-20 | 28 | M24xP1.0 | |
| UM | ER-25 | 42 | M32xP1.5 |
| ER-32 | 50 | M40xP1.5 |
