壓花刀柄
特徵說明 : 外徑專用
適用廠牌 : 車滾花刀柄/滾花輪
- 車滾花刀柄
車床壓花刀柄適用於CNC車床和高速車床，可實現高效率的加工。此壓花刀柄是外徑專用的，可以讓您在加工過程中輕鬆實現壓花效果。雖然車床壓花刀柄本身不附帶壓花輪，但您可以根據實際需要選擇合適的壓花輪進行使用。

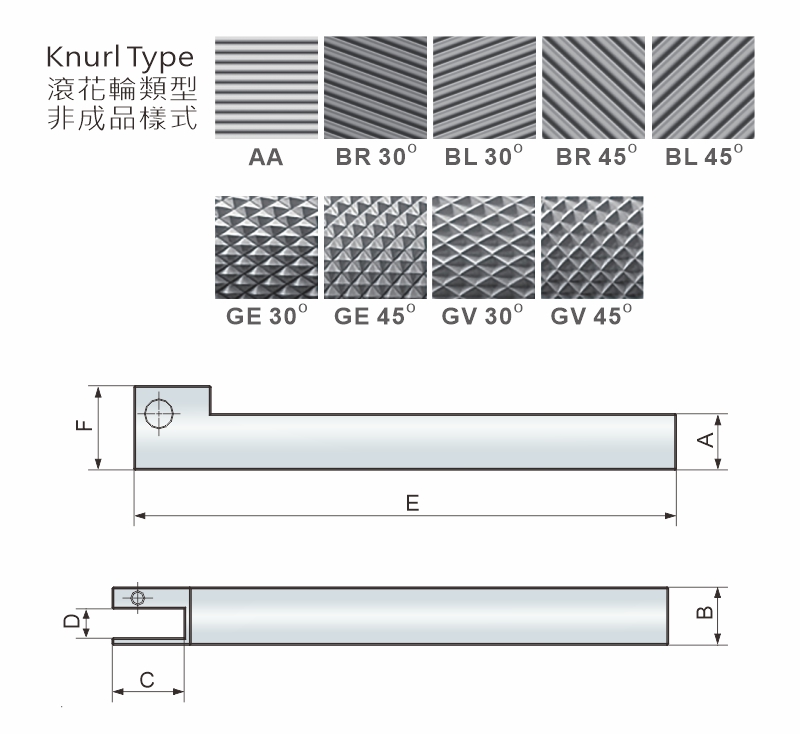

尺寸表
| 編號 | 滾花輪尺寸 | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| KK1H110150404 | 15x4x4 | 10 | 10 | 14 | 4 | 120 | 17 |
| KK1H112150404 | 15x4x4 | 12 | 12 | 14 | 4 | 120 | 17 |
| KK1H116150404 | 15x4x4 | 16 | 16 | 14 | 4 | 120 | 17 |
| KK1H112150604 | 15x6x4 | 12 | 12 | 14.5 | 6 | 100 | 18 |
| KK1H116150604 | 15x6x4 | 16 | 16 | 15 | 6 | 90 | 21.5 |
| KK1H110190604N | ¾ x ¼ x 3/16 keep輪子 | 10 | 10 | 15.5 | 6.4 | 120 | 19 |

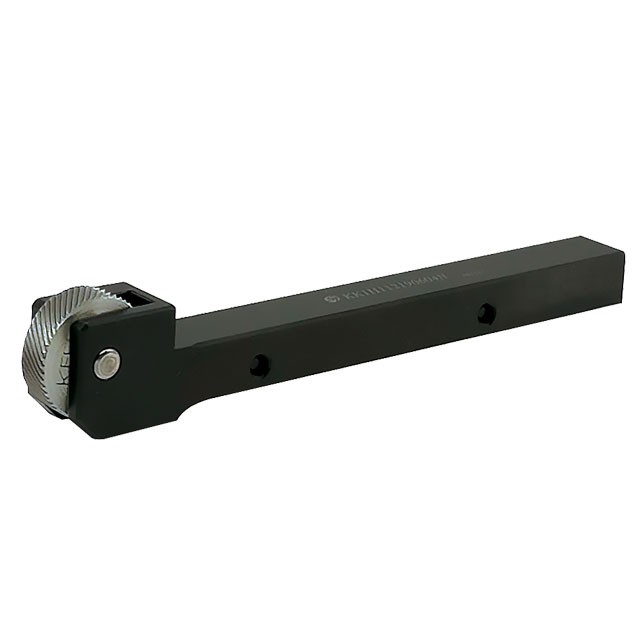

| KK1H112190604N | ¾ x ¼ x 3/16 keep輪子 | 12 | 12 | 15.5 | 6.4 | 120 | 19 |
| KK1H112200606 | 20x6x6 | 12 | 12 | 17 | 6 | 120 | 19 |
| KK1H116200606 | 20x6x6 | 16 | 16 | 17 | 6 | 120 | 19 |
| KK1H120200606 | 20x6x6 | 20 | 20 | 17.5 | 6 | 105 | 26.8 |
| KK1H112200806 | 20x8X6 | 12 | 12 | 17 | 8 | 110 | 18 |
| KK1H116200806 | 20x8x6 | 16 | 16 | 17 | 8 | 110 | 24.3 |

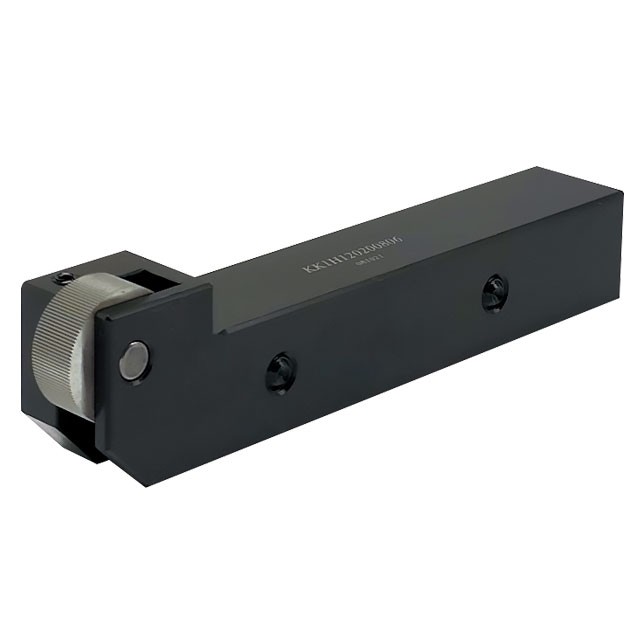

| KK1H120200806 | 20x8x6 | 20 | 20 | 17 | 8 | 120 | 28 |
| KK1H125200806 | 20x8X6 | 25 | 25 | 17 | 8 | 120 | 28 |
| KK1H120201006 | 20x10x6 | 20 | 20 | 17.5 | 10 | 105 | 26 |
| KK1H125201006 | 20x10x6 | 25 | 25 | 17.5 | 10 | 130 | 33 |
