單頭鑽孔軸
適用廠牌 : 攻牙軸 /鑽孔軸/ ER筒夾/攻牙筒夾
- 鑽孔軸

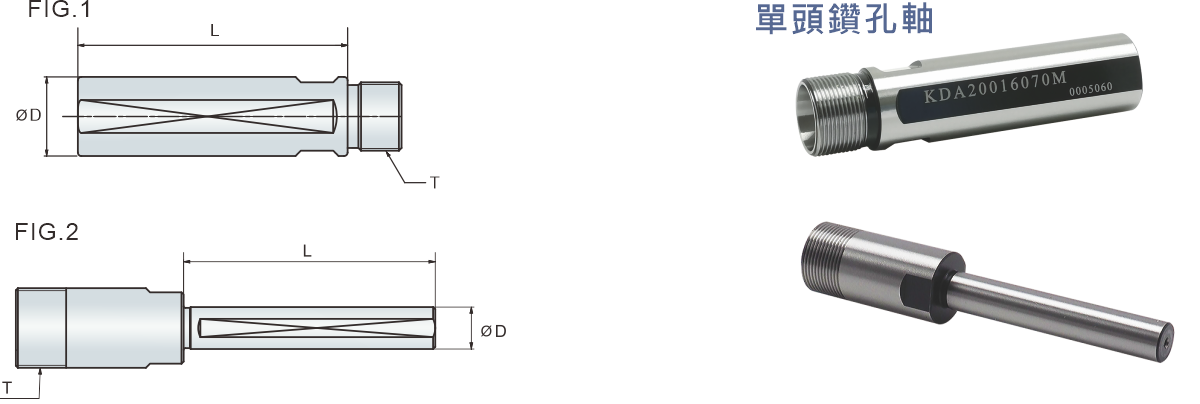

尺寸表
| 編號 | 品名 | FIG | D(柄徑) | T(筒夾) | L(不含牙長) | 螺帽 | 出水 |
|---|---|---|---|---|---|---|---|
| KDA07011060MNF | 延長桿 | 1 | 7 | 11 | 60 | M | |
| KDA10011070MNF | 延長桿 | 1 | 10 | 11 | 70 | M | |
| KDA10011070ANF | 延長桿 | 1 | 10 | 11 | 70 | A | |
| KDA10016060MNF | 延長桿 | 2 | 10 | 16 | 60 | M | |
| KDA12011060ANF | 延長桿 | 1 | 12 | 11 | 60 | A | |
| KDA12011100A0F | 鑽孔軸 | 1 | 12 | 11 | 100 | A | |
| KDA12011100ANF | 延長桿 | 1 | 12 | 11 | 100 | A | |
| KDA12016045MNF | 延長桿 | 2 | 12 | 16 | 45 | M | |
| KDA16011050M0F | 鑽孔軸 | 1 | 16 | 11 | 50 | M | |
| KDA16011050MNF | 延長桿 | 1 | 16 | 11 | 50 | M | |
| KDA16011100M0F | 鑽孔軸 | 1 | 16 | 11 | 100 | M | |
| KDA17011070A0F | 鑽孔軸 | 1 | 17 | 11 | 70 | A | |
| KDA17011070M0F | 鑽孔軸 | 1 | 17 | 11 | 70 | M | |
| KDA19011050A0F | 鑽孔軸 | 1 | 19.05 | 11 | 50 | A | |
| KDA19011070A0F | 鑽孔軸 | 1 | 19.05 | 11 | 70 | A | |
| KDA20011050A0F | 鑽孔軸 | 1 | 20 | 11 | 50 | A | |
| KDA20011050M0F | 鑽孔軸 | 1 | 20 | 11 | 50 | M | |
| KDA20016050M0F | 鑽孔軸 | 1 | 20 | 16 | 50 | M | |
| KDA22016049M0F | 鑽孔軸(含O型環) | 1 | 22 | 16 | 49 | M | |
| KDA23020080M0F | 鑽孔軸 | 1 | 23 | 20 | 80 | M | |
| KDA25016100A0F | 鑽孔軸 | 1 | 25 | 16 | 100 | A | |
| KDA32025060UMF | 鑽孔軸 | 1 | 32 | 25 | 60 | UM |
