STAR筒夾套筒
特徵說明 : ●走心式車床筒夾套筒 ●精密研磨●性價比高
適用廠牌 : 筒夾套筒/車床導套-筒夾
- 筒夾套筒
應用：固定夾緊材料或產品零件的一種夾具，以便加工成型。
優勢：合金鋼材質SNCM220
●增加筒夾強度、硬度
●衝擊值、韌性、彈性
●延長筒夾套筒使用壽命
六大優勢：
1. 精度高 2.同心度好 3.台灣製造 4.規格多樣 5.品質穩定 6.彈性好

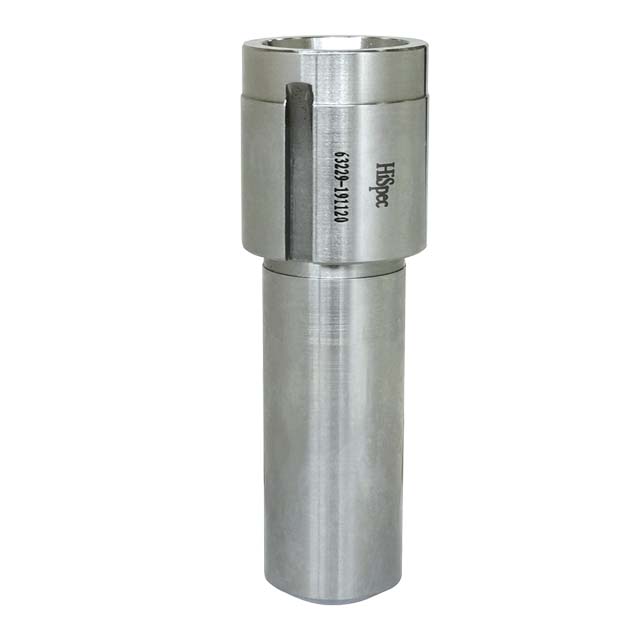

KSR10JA001T

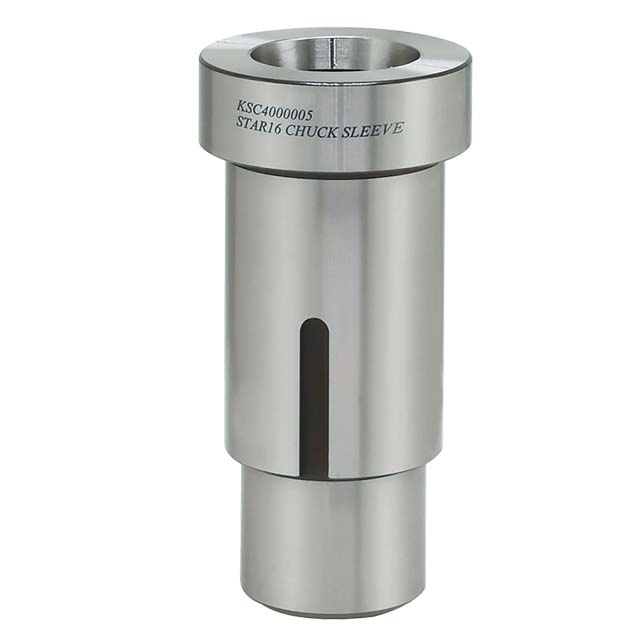

KSC4000005

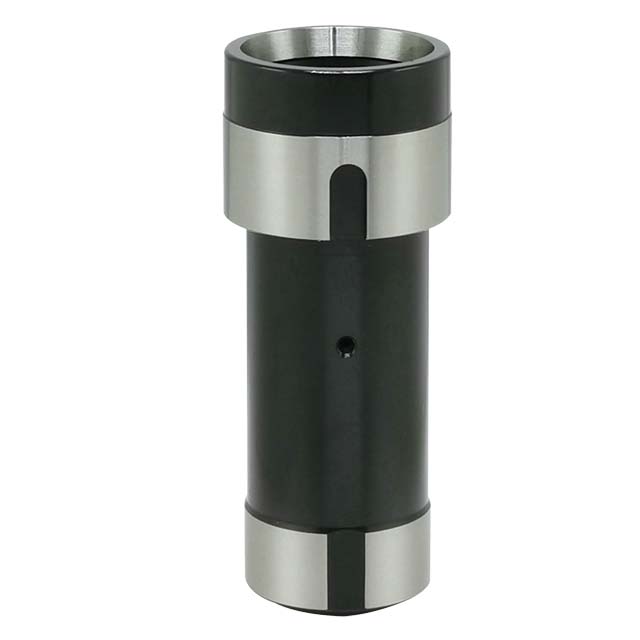

KSR20JC001T

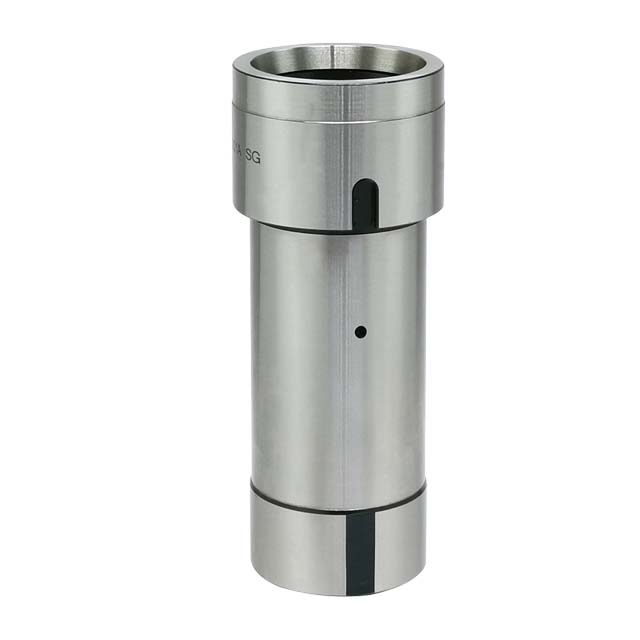

KSV32J001ASG

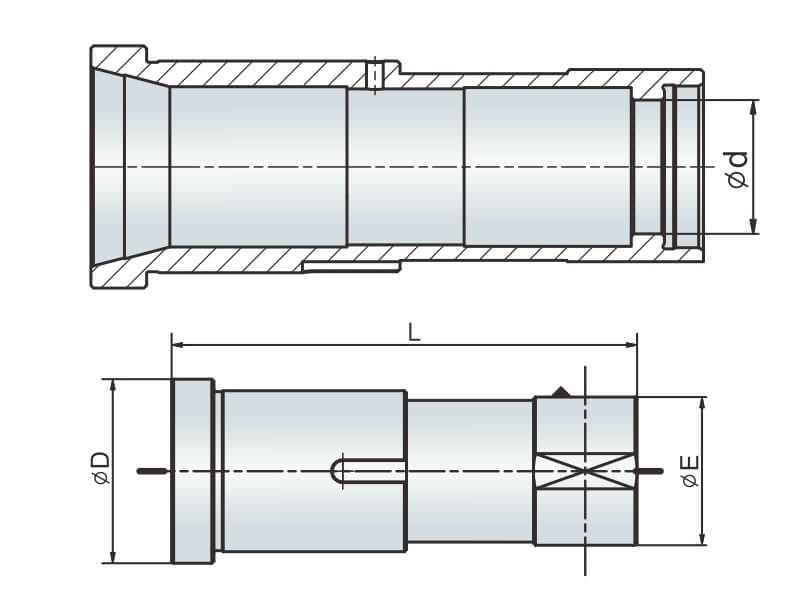

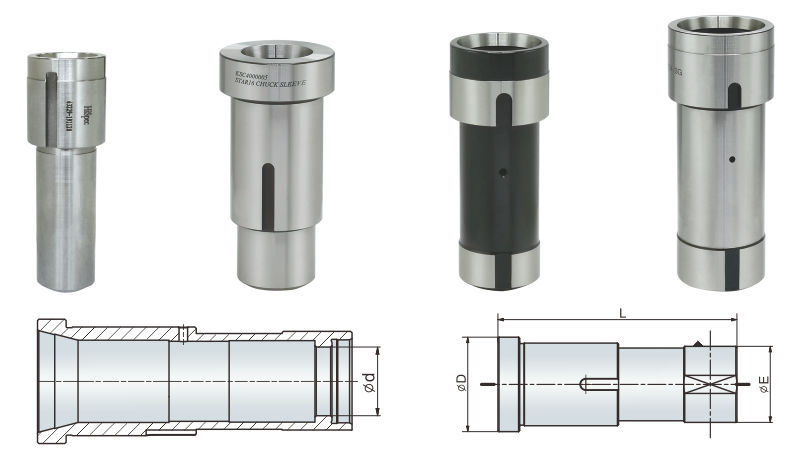

尺寸表
| 編號 | 品名 | ØD | Ød | L | ØE |
|---|---|---|---|---|---|
| KSR10JA001T | SR-10J 主軸筒夾套筒 | 27 | 11 | 83 | 21 |
| KSR10JB001T | SR-10J 副主軸筒夾套筒 | 25.4 | 11.5 | 89 | 20 |
| KSC4000005 | SR16/SB16主軸筒夾套筒 | 42 | 16.5 | 87 | 29 |
| KSC4000010T | SB16改P16副軸筒夾套筒 | 31.5 | 21.5 | 91 | 31 |
| KSC4000014 | SB16Ⅱ主軸筒夾套筒 | 42 | 16.5 | 104 | 35 |
| KSR20CC001ASG | SR20R/SB20RN/IV主軸筒夾套筒 | 43.5 | 21 | 110 | 35 |
| KSR20CC001BSG | SR20主軸筒夾套筒 | 42 | 21 | 104.5 | 35 |
| KSR20CC002SG | SR20R/JC/JN/RII/SV20/SB20副軸筒夾 | 42 | 25.5 | 104 | 34.5 |

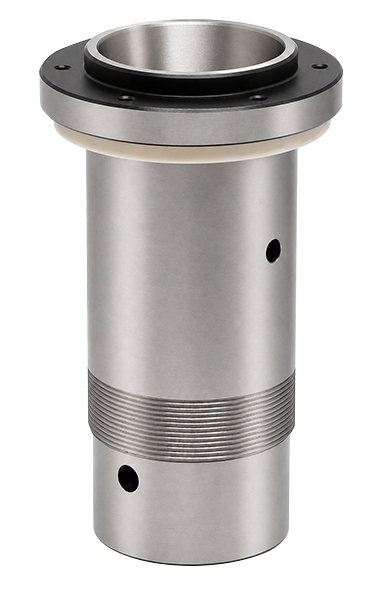

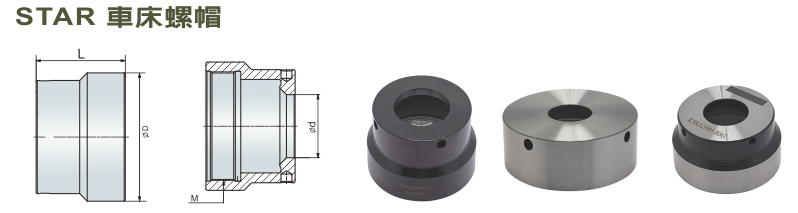

| KSR20GB001SG | SR20導套套筒 | 56.8 | 33 | 97 | 40 |
| KSR20JN0023BTL | SR20JC/JN 副軸筒夾套筒改津上20A | 42 | 25.5 | 101 | 34.5 |
| KSR20R0023ATL | SR20RⅡ/Ⅲ/JII主軸筒夾套筒改津上20A | 43.5 | 24 | 110 | 35 |
| KSR20JC001T | SR20JC/JN主軸筒夾套筒 | 42 | 21 | 104 | 35 |
| KSR20JC0023ALS | SR20JC/JN/SB主軸筒夾套筒改津上20A | 42 | 24 | 104 | 35 |
| KSR32J001ASG | SR32J/SR32/SV32J 主軸筒夾套筒 | 56 | 33 | 140 | 48 |
| KSR32J001BSG | SR32J/SR32/SV32J 副主軸筒夾 | 55 | 37.7 | 125 | 51 |
| KSR32J002ASG | SR32主軸筒夾套筒改SR20 | 56 | 21 | 140 | 48 |
| KSR32J002BSG | SR32副主軸筒夾套筒改SR20 | 55 | 26.5 | 125 | 50.5 |
| KSR32JII003A | SR32JII主軸筒夾套筒改SR20 | 55 | 22 | 140 | 42 |
| 筒夾套筒螺帽 | |||||
| KSR20JC0001 | SR20JC/SB20RG/SR20RII副軸螺帽 | M50xP1.0(內牙) | |||
| KSR32J003ASG | SR32 主軸筒夾螺帽改SR20 | M76xP1.5(內牙) | |||
| KSR32J003BSG | SR32 副軸筒夾螺帽改SR20 | M62xP1.0(內牙) | |||
| KSR32JII004A | SR32JII 主軸筒夾螺帽改SR20 | M68xP1.5(內牙) | |||
| KSR20JC0023A | SR20JC/JN主軸筒夾螺帽改津上20A | M56xP1.5(內牙) | |||
| KSR32J001A | SR32J 主軸筒夾螺帽 | M70xP1.5(內牙) | |||
CINCOM筒夾套筒 TSUGAMI津上筒夾套筒 NOMURA野村筒夾套筒
