Floating reamer holder
Feature : Floating Reamer Holder for Lathe
Machine : FLOATING REAMER HOLDER
The applications of floating reamer holder:
Floating reamer holder can be applied on Drilling machines, vertical machining centers, grinding machines
GP1116000

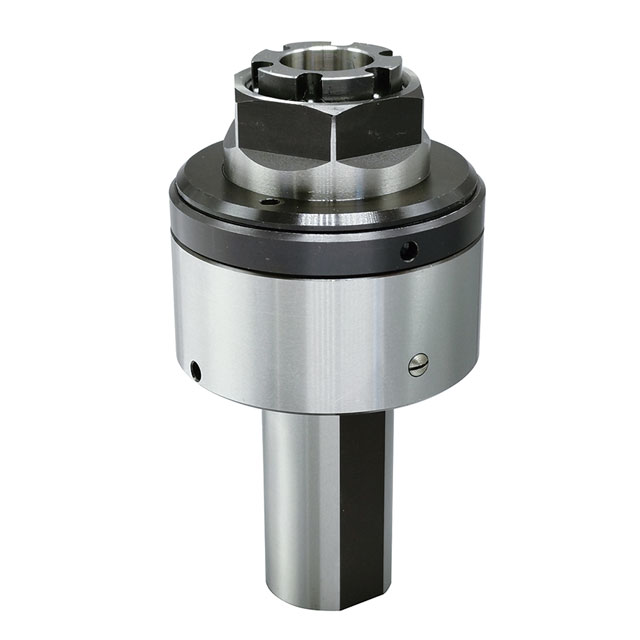

GP2125000

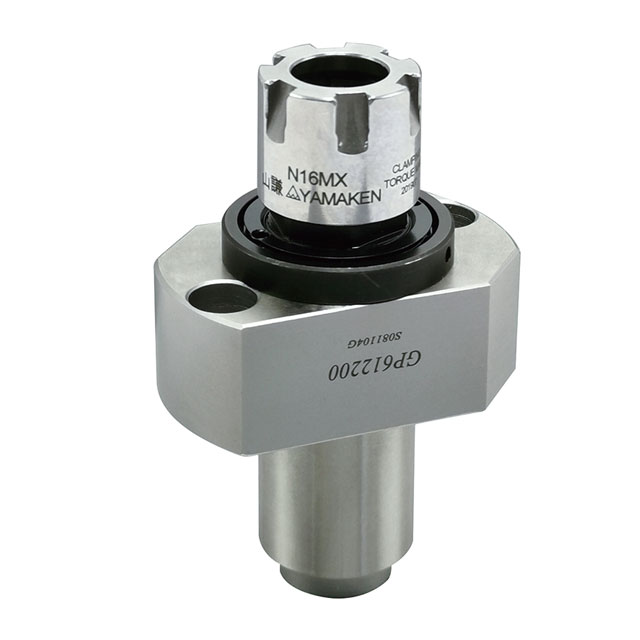

GP612200

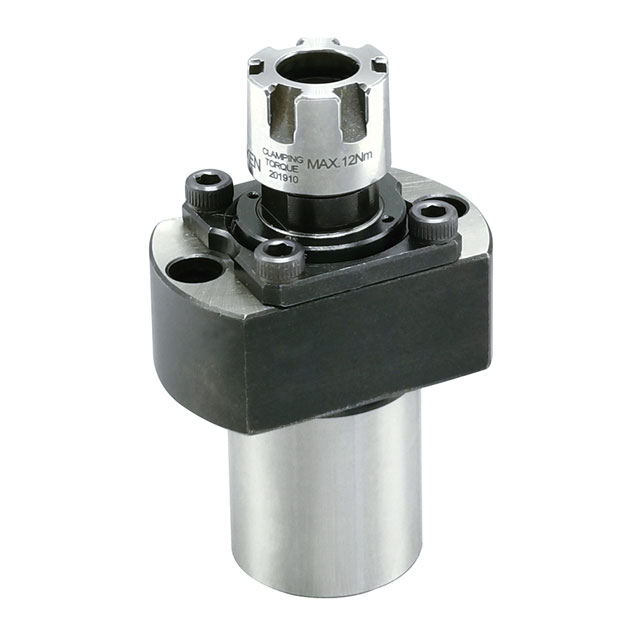

GPN112200

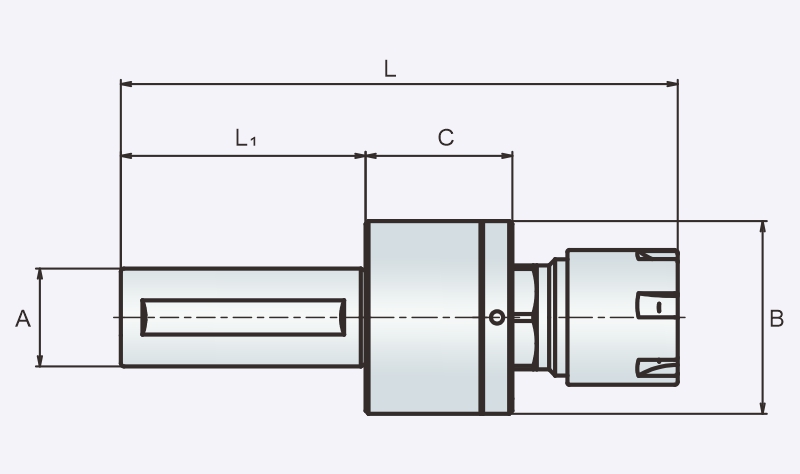

尺寸表
| CODE | A | B | C | Tool clamping | L | L1 |
|---|---|---|---|---|---|---|
| GP1116000 | 16 | 25 | 17 | ER-11 | 80 | 42 |
| GP6116000 | 16 | 31.5 | 24 | ER-16 | 91 | 40 |
| GP1117000 | 17 | 25 | 17 | ER-11 | 80 | 42 |
| GP6117000 | 17 | 31.5 | 24 | ER-16 | 91 | 40 |
| GP6122000 | 22 | 50 | 24 | ER-16 | 81 | 30 |
| GPN112200 | 22 | 38 | 14.5 | ER-11 | 62.7 | 25 |
| GPN112300 | 23 | 38 | 14.5 | ER-11 | 62.7 | 25 |
| GP2125000 | 25 | 56 | 35 | ER-20 | 104 | 50 |
